Day 53 - Spring 5.x guest file upload/download 프로그램 만들기 -
ksyke
2024. 10. 11. 12:49
1. H2 table 만들기
create table guest(
num int primary key auto_increment,
name varchar(10),
file varchar(255),
path varchar(255)
);
insert into guest (name,file,path) values ('test1',null,null);
insert into guest (name,file,path) values ('test2',null,null);
insert into guest (name,file,path) values ('test3',null,null);
commit;2. spring legacy project
3. pom.xml 업데이트
3-1. java version up
<properties>
<java-version>1.8</java-version>
<org.springframework-version>5.3.39</org.springframework-version>
<org.aspectj-version>1.6.10</org.aspectj-version>
<org.slf4j-version>1.6.6</org.slf4j-version>
</properties>
<build>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>2.5.1</version>
<configuration>
<source>1.8</source>
<target>1.8</target>
<compilerArgument>-Xlint:all</compilerArgument>
<showWarnings>true</showWarnings>
<showDeprecation>true</showDeprecation>
</configuration>
</plugin>
</buid>3-2. spring 5.3.39 version up
<org.springframework-version>5.3.39</org.springframework-version>3-3. spring jdbc 추가
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>${org.springframework-version}</version>
</dependency>3-5. junit 4.13으로 버전업
<!-- Test -->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.13</version>
<scope>test</scope>
</dependency>3-6. lombok 추가
<!-- lombok -->
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>1.18.34</version>
<scope>provided</scope>
</dependency>3-7. mybatis spring, mybatis 추가
<!-- mybatis -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>2.0.6</version>
</dependency>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.5.16</version>
</dependency>3-9. h2 engine 추가 (scope 삭제)
<!-- h2 -->
<dependency>
<groupId>com.h2database</groupId>
<artifactId>h2</artifactId>
<version>1.4.200</version>
</dependency>3-10. file upload
<!-- commons-fileupload -->
<dependency>
<groupId>commons-fileupload</groupId>
<artifactId>commons-fileupload</artifactId>
<version>1.5</version>
</dependency>4. servlet-context (beans, context, mvc)추가
<context:component-scan base-package="com.gimhae.day53" />
<beans:bean id="multipartResolver"
class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
<beans:property name="maxUploadSize" value="5242880"/>
</beans:bean>5. web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.1" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd">6. root-context (beans, mybatis-spring, p)추가
<bean id="dataSource"
class="org.springframework.jdbc.datasource.DriverManagerDataSource"
p:driverClassName="org.h2.Driver"
p:url=""
p:username=""
p:password=""
/>
<bean id="sqlSessionFactory"
class="org.mybatis.spring.SqlSessionFactoryBean"
p:dataSource-ref="dataSource"
/>
<mybatis-spring:scan base-package="com.gimhae.day53.model"/>7. Model 만들기
GuestVo
package com.gimhae.day53.model;
@Data
@NoArgsConstructor
@AllArgsConstructor
@Builder
public class GuestVo {
int num;
String name,file,path;
}GuestDao(Interface)
package com.gimhae.day53.model;
@Mapper
public interface GuestDao {
@Select("select * from guest")
List<GuestVo> list();
}8. HomeController
package com.gimhae.day53;
@Controller
public class HomeController {
@Autowired
GuestDao guestDao;
@RequestMapping(value = "/", method = RequestMethod.GET)
public String home(Model model) {
model.addAttribute("list", guestDao.list());
return "index";
}
@GetMapping("/add")
public void add() {}
@PostMapping("/")
public String add(String name,MultipartFile file,HttpServletRequest req) {
String origin=file.getOriginalFilename();
String newName=System.currentTimeMillis()+origin;
GuestVo bean=GuestVo.builder()
.name(name)
.file(origin)
.path(newName)
.build();
try {
File upload=new File(req.getRealPath("./resources")+"/"+newName);
System.out.println(upload.getCanonicalPath());
file.transferTo(upload);
} catch (IllegalStateException | IOException e) {
e.printStackTrace();
}
// try (
// FileOutputStream os=new FileOutputStream(upload+"/"+newName);
// InputStream is=file.getInputStream();
// ){
// int cnt=-1;
// while((cnt=is.read())!=-1) {
// os.write(cnt);
// }
// } catch (IOException e) {
// e.printStackTrace();
// }
guestDao.add(bean);
return "redirect:./";
}
@GetMapping("/login")
public String login(HttpSession session) {
session.setAttribute("user", "root");
return "redirect:./";
}
@GetMapping("/logout")
public String logout(HttpSession session) {
session.invalidate();
return "redirect:./";
}
@GetMapping(value = "/download")
public void download2(HttpSession session,HttpServletRequest req,HttpServletResponse resp
,@RequestParam("o") String origin,@RequestParam("f") String newName) {
if(session.getAttribute("user")==null || !session.getAttribute("user").equals("root")) {
try {
resp.sendRedirect("./");
} catch (IOException e) {
e.printStackTrace();
}
return;
}
resp.setContentType("application/octet-stream");
resp.setHeader("Content-Disposition", "attachment; filename=\""+origin+".jsp\"");
File upload=new File(req.getRealPath("./resources")+"/"+newName);
try (
InputStream is=new FileInputStream(upload);
OutputStream os=resp.getOutputStream();
){
int cnt=-1;
while((cnt=is.read())!=-1) {
os.write(cnt);
}
} catch (FileNotFoundException e) {
e.printStackTrace();
} catch (IOException e1) {
e1.printStackTrace();
}
}
@GetMapping("/{origin}/{newName:.+}")
public void download3(HttpSession session,HttpServletRequest req,HttpServletResponse resp
,@PathVariable String origin
,@PathVariable String newName) {
if(session.getAttribute("user")==null || !session.getAttribute("user").equals("root")) {
try {
resp.sendRedirect("../");
} catch (IOException e) {
e.printStackTrace();
}
return;
}
resp.setContentType("application/octet-stream");
resp.setHeader("Content-Disposition", "attachment; filename=\""+origin+".jsp\"");
File upload=new File(req.getRealPath("./resources")+"/"+newName);
try (
InputStream is=new FileInputStream(upload);
OutputStream os=resp.getOutputStream();
){
int cnt=-1;
while((cnt=is.read())!=-1) {
os.write(cnt);
}
} catch (FileNotFoundException e) {
e.printStackTrace();
} catch (IOException e1) {
e1.printStackTrace();
}
}
@GetMapping("/add2")
public void add2() {}
@PostMapping("/add2")
public void add2(MultipartFile[] files) {
for(MultipartFile file: files) {
System.out.println(file.getOriginalFilename());
}
}
}9. index.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
</head>
<body>
<nav>
<a href="/">list</a>
<a href="./add">add</a>
<a href="./login">login</a>
<a href="./logout">logout(${sessionScope.user})</a>
</nav>
<table>
<thead>
<tr>
<th>글번호</th>
<th>이름</th>
<th>download1</th>
<th>download2</th>
<th>download3</th>
</tr>
</thead>
<tbody>
<c:forEach items="${list }" var="bean">
<tr>
<td>${bean.num }</td>
<td>${bean.name }</td>
<td>
<c:if test="${bean.file ne null}">
<a href="resources/${bean.path }">${bean.file}</a>
</c:if>
</td>
<td>
<c:if test="${bean.file ne null}">
<a href="download?o=${bean.file }&f=${bean.path}">download</a>
</c:if>
</td>
<td>
<c:if test="${bean.file ne null}">
<a href="${bean.file }/${bean.path}">download</a>
</c:if>
</td>
</tr>
</c:forEach>
</tbody>
</table>
<a href="add">입력</a>
</body>
</html>10. add.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
<h2>add page</h2>
<form action="./" method="post" enctype="multipart/form-data">
<div>
<input name="name" placeholder="name"/>
</div>
<div>
<input name="file" type="file"/>
</div>
<div>
<button>입력</button>
</div>
</form>
</html>11. add2.jsp
<head>
<script src="https://code.jquery.com/jquery-1.12.4.min.js" integrity="sha384-nvAa0+6Qg9clwYCGGPpDQLVpLNn0fRaROjHqs13t4Ggj3Ez50XnGQqc/r8MhnRDZ" crossorigin="anonymous"></script>
<script type="text/javascript">
$(function(){
var file=$('form #file');
file.find('button').click(e=>{
file.append('<br/><input type="file" name="files"/>');
});
});
</script>
</head>
<body>
<h2>add page</h2>
<form action="./add2" method="post" enctype="multipart/form-data">
<div>
<input name="name" placeholder="name"/>
</div>
<div id="file">
<button type="button">추가</button>
<input name="files" type="file"/>
</div>
<div>
<button>입력</button>
</div>
</form>
</html>11-1. Log Aop
package com.gimhae.day49.aop;
//@Slf4j
@Component
@Aspect
public class LogAop {
@Before("execution(* com.gimhae.day49..*Impl.*(..))")
public void before(JoinPoint join) {
System.out.println("param:"+Arrays.toString(join.getArgs()));
}
@AfterReturning(
returning = "obj",
pointcut = "execution(* com.gimhae.day49..*Impl.*(..))")
public void afterSuccess(Object obj) {
// log.debug("after");
System.out.println("return:"+obj);
}
}12. 서비스 만들기
12-1. Service
package com.gimhae.day49.dept.service;
@Service
public class DeptService {
@Autowired
SqlSession sqlSession;
final String success="{\"result\":}";
public List<?> list(){
DeptDao deptDao=sqlSession.getMapper(DeptDao.class);
return deptDao.pullList();
}
public DeptVo getOne(int deptno){
DeptDao deptDao=sqlSession.getMapper(DeptDao.class);
return deptDao.getList(deptno);
}
public String add(DeptVo bean){
DeptDao deptDao=sqlSession.getMapper(DeptDao.class);
return "{\"result\":" + deptDao.addList(bean) + "}";
}
public String edit(DeptVo bean){
DeptDao deptDao=sqlSession.getMapper(DeptDao.class);
return "{\"result\":" + deptDao.setList(bean) + "}";
}
public String delete(int deptno){
DeptDao deptDao=sqlSession.getMapper(DeptDao.class);
return "{\"result\":" + deptDao.rmList(deptno) + "}";
}
}12-2. Controller
package com.gimhae.day49.api;
@RestController
@RequestMapping("/api/dept/")
@RequiredArgsConstructor
public class DeptController {
private final DeptService deptService;
@GetMapping("")
public List<?> list(){
return deptService.list();
}
@GetMapping("/{deptno}")
public DeptVo detail(@PathVariable int deptno) {
return deptService.getOne(deptno);
}
@PostMapping(value = "",produces = MediaType.APPLICATION_JSON_UTF8_VALUE)
public String add(@ModelAttribute DeptVo bean) {
return deptService.add(bean);
}

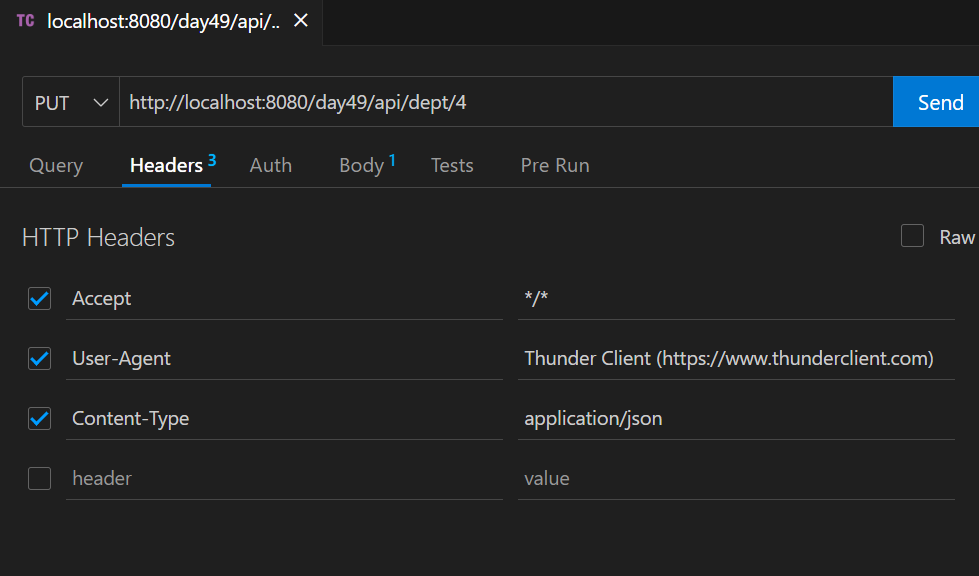

@PutMapping(value = "{deptno}",produces = MediaType.APPLICATION_JSON_UTF8_VALUE)
public String edit(@RequestBody DeptVo bean) {
return deptService.edit(bean);
}
@DeleteMapping(value = "{deptno}",produces = MediaType.APPLICATION_JSON_UTF8_VALUE)
public String delete(@PathVariable int deptno) {
return deptService.delete(deptno);
}
}13. web project 만들기
13-1. pom.xml
서블릿 업데이트
<!-- Servlet -->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>3.1.0</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>javax.servlet.jsp</groupId>
<artifactId>javax.servlet.jsp-api</artifactId>
<version>2.3.0</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>jstl</artifactId>
<version>1.2</version>
</dependency>13-2. web.xml
- schema 수정
<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.1" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd">- encoding filter 달아주기
<filter>
<filter-name>encoding</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>utf-8</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>encoding</filter-name>
<url-pattern>/api/*</url-pattern>
</filter-mapping>13-3. maven update
13-4. .setting의 .xml 파일 버전 변경 (1.8/3.1)
13-5. maven update
14. API 테스트 하기
https://www.postman.com/downloads/
[Download Postman | Get Started for Free
Try Postman for free! Join 30 million developers who rely on Postman, the collaboration platform for API development. Create better APIs—faster.
www.postman.com](https://www.postman.com/downloads/)
14-1. pom.xml
jacksonbind 추가
<!-- jackson-databind -->
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-databind</artifactId>
<version>2.15.2</version>
</dependency>api 서비스 테스트 하기
